Technical Parameters：
Model | YXTD-300C（Bagging Machine） |
（Overall dimension） | 3600mm*1120mm*1500mm |
Speed | Main machine speed: 20-30 cycles/min,1 stack of 2 bags, bagging 40-60 bags/min.（customizable） |
Bag size | W:90-160mm,L:140-220mmL:140-220mm(customizable) |
Package material | Composite film, aluminized film,PE/PP and other composite materials |
Packing method | Direct push, Gripper push |
Power consumption | Main machine 3.5KW/h |
Gas consumption | ≥30L/h |
Machine weight | ≥850KG |
Power supply | 3-phase 4-wire, 380V, 50/60 Hz |
Remarks | Customized models available on request |
※ Basic Features:

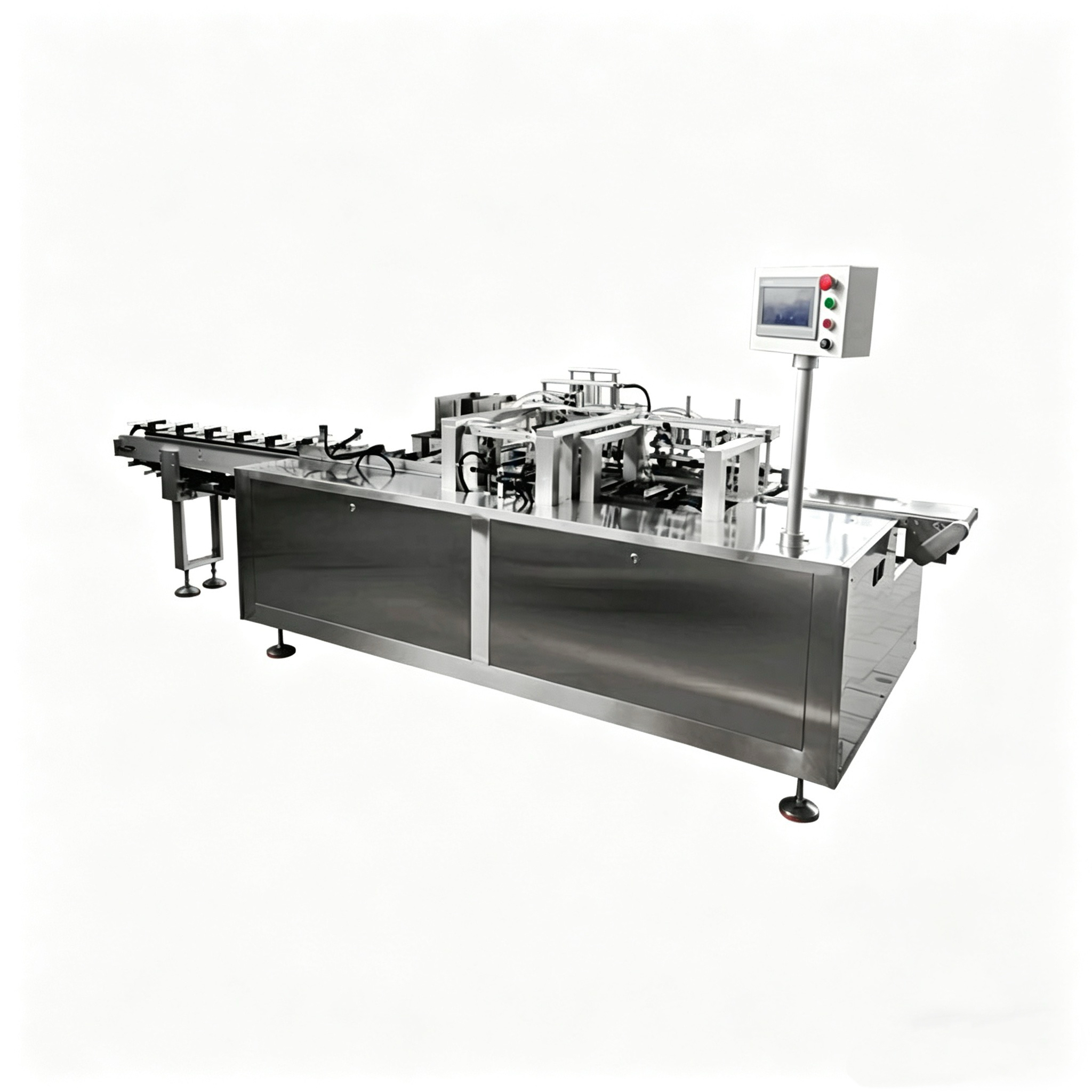

●The YXTD 300C is a fully automatic horizontal bagging machine, designed for efficient, high speed packaging, suitable for pre made bags and other composite bag types for various products.
●The machine adopts a mechanical structure for operation (more stable and durable). Most parts are made of pure aluminum, contact surfaces are 304 stainless steel, and there are very few wear parts.
●Suitable for various sizes of pre made bags. The main machine speed is 20–30 cycles per minute, bagging capacity is 40–60 bags per minute, saving 5–10 operators.
●Widely used in industries such as daily chemicals, pharmaceuticals, catering, gifts, hardware, handicrafts, digital communication, printing and packaging, and toys.
●The design and manufacturing of the machine comply with production line process requirements and layout plans, featuring an elegant appearance and high quality workmanship.
