Achieving dust-free operation on powder sachet packing machines requires a closed-loop engineering strategy that combines airtight enclosed frame designs, precision augmented auger dosing, synchronized negative-pressure dust extraction manifolds, anti-static electrostatic neutralizers, and optimized heat-sealing profiles to eliminate powder aerosolization and seal contamination.

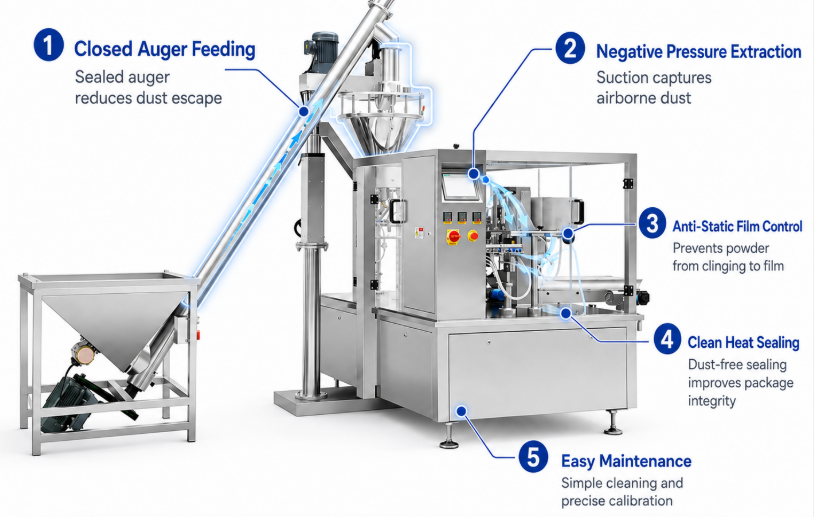

Section | Summary |
Root Causes of Powder Dusting | Airborne particles stem from violent air displacement during high-speed dosing, static charge buildup on film webs, and ambient air currents within open machine structures. |
Closed Dosing and Auger Feeder Design | Closed-loop auger funnels with anti-drip cut-off valves isolate the dosing head, preventing airborne powder escape during the filling drop cycle. |
Negative-Pressure Dust Extraction | Integrated suction hoods create a constant vacuum differential at the sachet neck, pulling away suspended particles before sealing occurs. |
Static Electricity Management | Anti-static ion bars neutralize surface charges on flexible laminate films, preventing dust from adhering to sachet inner walls and seal areas. |
Dynamic Heat Sealing & Seal Integrity | Precision thermal profiles combined with active seal-area dusting clean film surfaces prior to melting to guarantee zero seal leaks. |
Systemic Maintenance & Operational Protocols | Scheduled replacement of dust seals, vacuum filter clearing, and strict auger height calibration prevent mechanical wear from degrading containment over time. |
Powder aerosolization occurs primarily when falling micro-particles displace trapped air inside the sachet tube while electrostatic forces draw ambient dust directly onto film surfaces.
Understanding the physics of powder motion is essential before applying mechanical solutions. When ultra-fine materials such as milk powder, pharmaceutical formulations, cocoa, or chemical concentrates drop from a dosing funnel into a narrow film sachet, the air inside the sachet must be displaced upward. In an unmanaged environment, this high-velocity upward air displacement collides directly with the descending column of powder. This counter-current air motion strips fine particles from the main mass, generating an airborne dust cloud that disperses inside the machine frame and contaminates surrounding components.
A secondary cause is electrostatic attraction generated during film unwinding. Flexible packaging laminates—such as PET, Aluminum foil, and PE combinations—accumulate significant static charges as they roll over tension rollers at elevated speeds. These static charges attract airborne particulates like a magnet. When dust adheres to the interior heat-seal margins of the laminate, it creates microscopic channels during the thermal sealing phase. This results in weak, permeable seals, compromising package shelf life and inviting contamination.
Finally, ambient air currents across an open frame accelerate dust migration. Fine powders with mean particle diameters below 50 microns remain suspended in air currents for extended periods. Without continuous physical containment, ambient plant drafts carry these airborne particles throughout the production line, settling on electrical drives, optical sensors, and mechanical linkages. This causes accelerated component wear and frequent emergency stops.
Implementing completely closed auger dosing funnels equipped with mechanical anti-drip cut-off gates stops powder migration right at the discharge point.
The primary mechanical barrier against particulate escape is the design of the volumetric or gravimetric feeder unit. Open gravity feeders or unsealed slider gates are fundamentally unsuitable for fine particulate matter. Achieving dust free powder packaging requires a direct, sealed coupling between the product hopper, the vertical auger housing, and the sachet forming tube. Modern dosing assemblies feature high-precision ground vertical auger screws enclosed in polished stainless steel tubes with tight radial clearances. This design minimizes internal turbulence and maintains consistent volumetric displacement.
To prevent post-dosing dribble—a major contributor to airborne dust—auger discharge ends must feature pneumatic anti-drip cut-off valves or rotary flap gates. These valves snap shut milliseconds after the auger completes its defined rotational count, retaining loose particles inside the dosing tube until the next container is indexed. When integrating automated dosing lines, utilizing a High-Speed Non-Vacuum Powder Packaging Machine for Efficient Powder Filling provides the enclosed structural framework needed to contain particulate surges during intense filling cycles.
Mechanical Feature | Standard Open Filling System | Advanced Dust-Free Closed System |
Dosing Coupling | Open gap between funnel and tube | Sealed gasketed quick-release flange |
Flow Termination | Free-fall gravity cutoff | Pneumatic needle valve / Anti-drip flap |
Surface Finish | Standard 2B Ra 0.8 µm | Mirror Polish Ra < 0.4 µm with PTFE lining |
Hopper Ventilation | Open mesh venting filter | HEPA-filtered closed-loop pressure relief |
Vibration Isolation | Direct frame attachment | Rubber isolators to prevent powder agitation |
For cohesive powders that pack tightly under pressure, auger funnels feature slow-speed agitators configured with counter-rotating blades. These agitators break up product bridges without over-aerating the mass. When powders are over-aerated, trapped air bubbles expand upon discharge, shooting particulate matter across the forming tube. Maintaining uniform bulk density through precise agitation control ensures stable dosing weights while keeping the material stream concentrated down the centerline of the sachet tube.
Integrating strategically placed vacuum extraction hoods operating under continuous negative pressure captures suspended airborne particles at the precise moment of sachet filling.
Physical containment alone cannot eliminate airborne dust during high-speed vertical form-fill-seal (VFFS) operations; active air control is required. A continuous negative-pressure dust collection system functions by generating a localized air velocity gradient directed inward toward suction ports located at the sachet opening. By ensuring that air flows exclusively into the extraction manifold, micro-particles cannot escape into the external cleanroom or outer machine housing.
The vacuum extraction ring must be situated around the dosing spout, right above the primary heat-sealing jaws. The velocity of the extraction air stream must be precisely calibrated: if the suction velocity is set too high, it pulls prime product out of the dosing column, resulting in weight inconsistencies and yield loss. If the velocity is set too low, airborne dust escapes the sachet neck and settles on the sealing surface. Balancing this air curtain requires dynamic inverter-driven vacuum turbines combined with fine-mesh particulate separators.
Airflow Balancing Tip: Calculate the face velocity at the extraction hood to maintain a laminar flow profile between 0.5 m/s and 1.2 m/s. This flow rate captures micro-dust suspended in air without disturbing the heavier falling powder mass.
Active ionizing bars mounted along the film unwind path neutralize electrostatic charges on flexible laminates to stop micro-powders from adhering to sachet inner walls.
Static electricity is a main factor behind stubborn powder dusting. As non-conductive packaging films unroll from the feed reel and pass across tension rollers, continuous friction generates high static charges, often exceeding 10,000 Volts. When powder descends into a statically charged film tube, fine particles are pulled sideways toward the inner laminate walls instead of dropping straight down to the base of the sachet.
To combat this, anti-static ionizer bars must be positioned along the film unwinding track. These systems generate a high-voltage AC or pulsed-DC field that splits ambient air molecules into positive and negative ions. As the charged film passes through this ionized cloud, it attracts opposing charges, dropping its net surface potential down to near zero.
Unwind Section Ionization: Position an AC ionizing bar directly after the film roll unwind brake to neutralize initial friction charges.
Forming Collar Ionization: Install compact ion emitters immediately before the film enters the forming collar to clear residual static induced by tension roller contact.
Internal Tube Air Blowers: Mount an ionized compressed-air jet directed downward into the formed sachet tube. This clears localized static pockets right before the auger discharge cycle begins.
Maintaining continuous static elimination prevents powder particles from coating the heat-seal zone. For operations aimed at eliminating contamination and line downtime, exploring Why Automated Powder Packaging Equipment Is Essential for Dust-Free Operation And Consistent Product Quality provides helpful context on how integrated static control boosts machine throughput and seal reliability.
Dynamic impulse sealing coupled with seal-area dust blowers clears residual particles off heat-seal surfaces to achieve leak-free sachet closures.
When fine powder settles on the heat-seal area of a sachet, standard constant-heat sealing bars compress those particles into the melted polymer matrix. This creates pinhole leaks, reduces seal strength, and leads to package failure during transit. Achieving a completely sealed sachet requires combining active physical clearing with specialized sealing jaw geometry.
Active seal-area dusting uses twin air nozzles mounted right above the transverse sealing jaws. Immediately after the auger dosing cycle completes, a brief pulse of high-velocity ionized air blasts down the inner face of the sachet seal area. This pulse dislodges stray powder particles, while a matching vacuum ring directly above captures the blown dust.
Sealing Parameter | Standard Constant Heat | Dynamic Impulse Sealing with Sponge Inserts |
Temperature Profile | Fixed high heat (160°C - 200°C) | Rapid thermal cycle under high pressure |
Particle Inclusion Tolerance | Poor (powders create leak paths) | High (elastomeric backing absorbs particles) |
Cooling Phase | Cooled outside the jaws | Cooled under pressure inside the jaws |
Seal Surface Cleaning | Manual wiping required | Integrated pulse-air blow off |
Typical Leaker Rate | 1.5% to 3.0% on fine powders | Less than 0.1% under cleanroom conditions |
Furthermore, integrating flexible elastomeric backing strip inserts behind the serrated sealing jaw faces helps absorb minute product contaminations during the thermal cycle. The soft backing deforms around microscopic powder grains, maintaining uniform clamping force across the entire width of the film. This prevents channels from forming and guarantees consistent, pressure-tight sachet seals.
To maintain maximum sealing efficiency across demanding production schedules, integrating a reliable High-Speed Non-Vacuum Powder Packaging Machine for Efficient Powder Filling keeps mechanical drive components aligned, minimizing seal misalignment caused by machine vibration.
Fully sealed stainless steel machine frames equipped with positive-pressure HEPA filtration units isolate operational mechanics from ambient powder dusting.
Mechanical containment relies heavily on the design of the outer machine frame. Standard open-frame architectures allow fine powder dust to contaminate internal drive motors, timing belts, pneumatic cylinders, and PLC control cabinets. Over time, abrasive powders wear out linear guides and cause intermittent short circuits in electrical systems.
High-performance powder sachet packaging machinery uses a two-zone structural enclosure system. The upper mechanical drive housing operates under positive HEPA air pressure, ensuring clean air constantly pushes outward through cabinet seams. In contrast, the lower product dosing chamber operates under localized negative pressure, trapping all fine dust particles within the active filling zone.
Stainless Steel Fabrication: Use smooth 304 or 316L stainless steel panels featuring sloped internal surfaces (minimum 45-degree angle) so fine dust slides down toward extraction points instead of settling on flat surfaces.
Sealed Cabinet Gaskets: Install seamless, closed-cell silicone door gaskets that resist breakdown from cleaning agents and prevent dust from infiltrating sensitive control electronics.
IP65 Washdown Seals: Specify IP65-rated brushless servo motors and sealed linear actuators for high-dust filling zones.
A well-sealed housing keeps airborne particles contained, protecting machine components, simplifying sanitization, and protecting operators from long-term dust exposure.
Executing disciplined maintenance routines focused on seal replacements, vacuum line clearance, and auger calibration ensures long-term dust-free performance.
Even the best-engineered machinery will lose containment if wearing components are neglected. Powder dust is naturally abrasive; it continuously wears down mechanical seals, vacuum tubing, anti-static emitter pins, and auger tips. Maintaining a dust-free packaging environment requires strict adherence to preventative maintenance intervals.
Operators must check dust extraction manifolds for partial blockages at the start of every shift. Powder cake build-up inside suction tubes reduces face velocity, allowing dust to escape. Quick-release clear manifold fittings enable operators to inspect line clarity without tools.
Emitters accumulate a non-conductive powder coating over time, diminishing their ionization efficiency. Cleaning the emitter needles weekly with isopropyl alcohol swabs restores sharp corona discharge performance and maintains steady static decay rates.
Auger screws must remain concentric with the funnel outlet wall. Friction caused by a misaligned shaft grinds powder into ultra-fine particles and wears out PTFE lip seals prematurely. Periodically checking auger runout ensures smooth dosing and long seal life. Maintaining these standards alongside an efficient High-Speed Non-Vacuum Powder Packaging Machine for Efficient Powder Filling helps keep your plant clean, efficient, and fully compliant with safety standards.
Operational Tip: Establish a strict replacement interval for lower auger PTFE shaft seals based on operating hours rather than waiting for visible leaks. Replacing worn seals early prevents powder from creeping up into the drive bearing housing, avoiding costly downtime.
Achieving consistent dust free powder packaging requires an integrated approach that combines mechanical containment, air pressure control, electrostatic control, and meticulous machine maintenance. By closing open transfer points, integrating negative-pressure air extraction, neutralizing static charges on packaging film, and maintaining positive pressure in drive enclosures, plant engineers can completely eliminate dust emissions. This strategy optimizes seal integrity, protects sensitive machine components, minimizes waste, and ensures a clean, safe, and highly efficient packaging operation.
