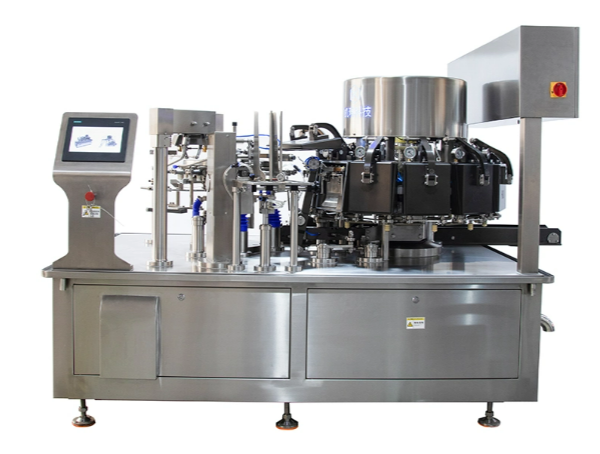

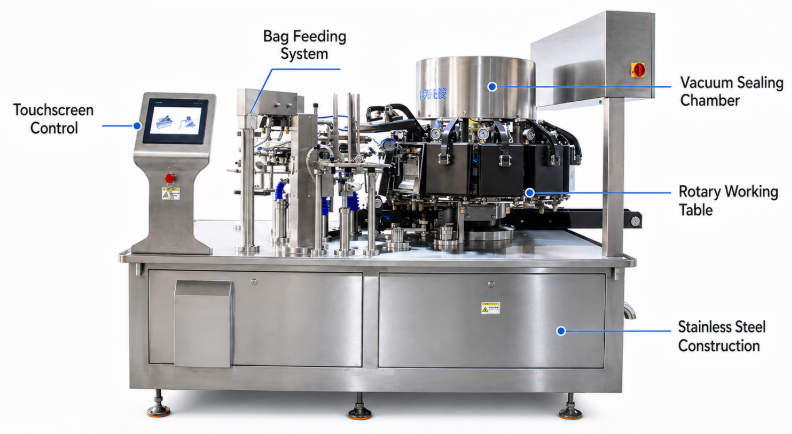

An automatic bag-feeding and packaging machine delivers superior operational performance by combining high-speed mechanical pouch indexing, precise pneumatic bag opening, dynamic multivariant dosing, and hermetic vacuum sealing into a unified rotary chassis. Operating at rates up to 60 bags per minute with target sealing reliability exceeding 99.8 percent, a modern Bag-Feeding Vacuum Packaging Machine maximizes overall equipment effectiveness through servo-driven kinematics, rapid toolless pouch size changeover, advanced sensor-guided bag opening verification, and hygienic stainless-steel construction compliant with stringent global standards.
Mechanical Design and Kinematic Performance
Pouch Feeding, Opening, and Positioning Capabilities
Vacuum Chamber Efficiency and Seal Integrity
Material Compatibility and Pouch Versatility
Operational Efficiency and Smart Control Integration
Maintenance Protocols and Hygienic Design Standards
The primary kinematic performance of an automated bag-feeding machine depends on rigid structural framing, high-torque servo drives, and synchronized indexers that minimize mechanical play during high-velocity rotation.
When analyzing machine performance on an active production line, structural integrity is the foundational metric. High-speed rotary pouch-packaging platforms experience constant rotational momentum and sudden deceleration forces. To mitigate frame distortion and structural vibration, industrial-grade systems utilize heavy-duty SUS304 or SUS316 stainless-steel main frames with wall thicknesses exceeding 12 millimeters. This structural rigidity preserves critical alignments between the pouch-loading station, opening grippers, dosing nozzles, and vacuum sealing chambers.
The underlying motion drive architecture usually pairs precision globoidal cam indexers with multi-axis AC servo motors. While older mechanical chain systems suffered from elongation over time, modern servo-driven indexing tables maintain rotational accuracy within fractions of a millimeter. When integrated into a high speed bag feeding vacuum packaging machine for optimized production efficiency, this precise spatial alignment ensures that incoming pouches are consistently centered directly beneath filling spouts, preventing product contamination on the seal flange.
Engineers routinely prioritize mechanical dynamic balance. As machine speeds push beyond 50 cycles per minute, inertia generated by heavy vacuum chambers revolving around a central axis can create significant torsional stress. By distributing mass symmetrically across an 8-station or 10-station rotary layout, dynamic balancing reduces bearing wear and lowers energy consumption during continuous multi-shift operations.
Component Specification | Standard Configuration | High-Performance Configuration |
Main Frame Material | SUS304 Stainless Steel | SUS316 Heavy-Duty Stainless Steel |
Indexing Drive Mechanism | Mechanical Globoidal Cam | Multi-Axis Direct-Drive Servo |
Rotational Positioning Accuracy | ±0.5 mm | ±0.1 mm |
Maximum Rotary Torque | 850 Nm | 1,400 Nm |
Structural Frame Thickness | 8 mm to 10 mm | 12 mm to 16 mm |
Reliable pouch pick-up and complete mouth opening require synchronized vacuum suction cups, air-jet injection nozzles, and mechanical opening fingers to eliminate misfeeds.
The pouch intake cycle is often the main bottleneck for automated packaging equipment. A high-performing bag-feeding module must process flat, pre-made pouches from a magazine without double-feeding or failing to open the pouch mouth. High-speed pneumatic vacuum arms pick individual bags using specialized silicone or fluoroelastomer suction pads. These suction pads are chosen for their abrasion resistance and consistent grip against glossy or textured pouch laminates.
Once picked, the bag transitions to mechanical grippers that clamp the outer margins of the pouch. Simultaneously, top and bottom suction cups pull the opposing faces of the pouch mouth apart. To guarantee that the bag interior is fully inflated before filling, a controlled blast of dry compressed air is injected into the pouch opening. Advanced optical sensors then verify the pouch's opening geometry. If the sensor detects a collapsed pouch, the machine automatically bypasses the filling station—preventing costly product spills and keeping the rotary chamber clean.
European clients often ask us why we favor dual-stage pouch opening mechanisms. In real-world processing environments, thin film static, humidity shifts, or heavy pouch laminates can cause pouch walls to cling together. A dual-stage mechanical opener physically extends fingers inside the pouch mouth to mechanically force it open, neutralizing static electricity and film rigidity issues before the dosing phase begins.
Parameter | Standard Operational Value | Advanced System Value |
Pouch Pickup Success Rate | 99.2 percent | 99.9 percent |
Compressed Air Pressure | 0.6 MPa | 0.8 MPa |
Vacuum Pressure for Suction | -0.07 MPa | -0.09 MPa |
Pouch Size Changeover Time | 15 to 20 minutes | Toolless (under 5 minutes) |
Misfeed Detection Reaction | Signal Alarm | Automatic Bypass and Auto-Eject |
Hermetic seal performance depends on precise evacuation timing within the vacuum chamber, controlled heating element temperatures, and uniform pressure application.
The evacuation and sealing phase is the most critical segment of a bag feeding vacuum packaging machine. Modern systems utilize a dual-structure rotary design, separating the bag-feeding carousel from the high-vacuum processing carousel. Once the pouch is filled, it transfers into an enclosed vacuum chamber. Industrial vacuum pumps quickly lower the internal chamber pressure to residual oxygen concentrations below 0.1 percent, preserving perishables like processed meats, cheeses, and ready-to-eat meals.
Thermal sealing occurs via impulse heating elements or continuously heated brass bars coated with high-grade PTFE (Teflon) tape. When sealing thick, multi-layer barrier bags (such as PET/AL/PE or PA/PE), the machine applies consistent pneumatic pressure while supplying an electric current impulse through Nichrome ribbons. A rapid cooling cycle follows, locking the molecular structure of the molten polymer layer while under pressure. This prevents micro-fractures in the seal margin during chamber decompression.
When evaluating seal performance, engineers analyze temperature curves, dwell times, and mechanical jaw parallelism. Microprocessor-controlled PID loops maintain heating bar temperatures within tight tolerances of ±1°C. This level of control prevents burn-through on thin films while guaranteeing complete fusion across thick gusset folds or zipper tracks.
Specification Metric | Standard Vacuum System | High-Vacuum Industrial System |
Vacuum Pump Capacity | 100 m³/h | 300 to 630 m³/h (Busch/Rietschle) |
Ultimate Vacuum Level | 1.0 mbar (100 Pa) | 0.1 mbar (10 Pa) |
Seal Bar Length Options | 200 mm to 300 mm | 320 mm to 450 mm |
Sealing Temperature Range | 100°C to 200°C | 80°C to 250°C (PID Controlled) |
Cooling System Type | Air Cooled | Liquid/Water Recirculating Cooling |
Topic Name (Vacuum Pump Maintenance & Micro-Leak Prevention): To maintain optimal pressure reduction rates inside rotary vacuum chambers, inspect vacuum pump oil clarity weekly and replace contaminated oil every 500 operating hours. Additionally, visually inspect and clean chamber seal gaskets daily using alcohol wipes to prevent small food particulates from creating vacuum leaks or causing improper pressure readings.
Modern bag-feeding packaging platforms accommodate diverse bag styles—including three-side seal, stand-up, side-gusset, and zipper pouches—across broad laminate materials.
A key advantage of pre-made bag-feeding machines over traditional Form-Fill-Seal (FFS) roll-stock equipment is their ability to process complex, high-aesthetic pouches. Modern food and chemical manufacturers rely on intricate packaging geometries to differentiate their brands on retail shelves. An automatic bag-feeding system easily adapts to flat three-side seal pouches, four-side seal pouches, stand-up Doypack configurations, side-gusset bags, and reclosable zipper pouches.
Processing varied materials requires customized jaw surfaces and dynamic tension control. For example, thin pure polyethylene (PE) recyclable films stretch easily under tension, requiring gentle mechanical handling and fast impulse cooling. Conversely, thick foil laminates (aluminum-oxide barrier films or high-density nylon structures) require elevated heat, higher mechanical clamping forces, and specialized knife profiles for clean pouch edge trimming.
When operating a flexible bag-feeding vacuum packaging machine, toolless changeover mechanisms are essential for minimizing downtime. Mechanical width adjustments for all gripper arms occur simultaneously via a central motorized control driven through the HMI interface, reducing line changeover times from hours down to minutes.
Pouch Category | Suitable Film Laminates | Key Machine Handling Requirement |
Three-Side Seal | PET/PE, PA/PE, BOPP/CPP | Standard pneumatic vacuum pickup |
Stand-Up Doypack | PET/AL/PE, PET/NY/PE | Bottom gusset mechanical opening pins |
Zipper Bag | PET/PE, Composite Films | Mechanical zipper opening device + air jet |
Side-Gusset Bag | Heavy Duty PA/PE, Kraft Paper | Specialized wide-opening tension grippers |
Recyclable Monomaterial | MDO-PE/PE, All-PP | Precision impulse thermal bar control |
Integrating programmable logic controllers, real-time sensor networks, and automated dosing peripherals converts standalone bag-feeding machines into responsive Industry 4.0 production hubs.
Modern manufacturing plants view packaging machines as interconnected digital nodes rather than isolated mechanical devices. The brain of an automated bag-feeding machine is its centralized PLC system (typically Allen-Bradley, Siemens, or Schneider Electric) paired with an intuitive touch-screen Human-Machine Interface (HMI). Operators manage machine speeds, thermal profiles, vacuum dwell durations, and pouch sizing recipes directly from a single control screen.
Smart control networks sync the bag feeder with upstream feeding peripherals—such as multihead combination weighers, auger fillers, liquid piston pumps, or combination multi-component dosing systems. The main PLC uses handshaking signals to confirm that a pouch is correctly opened, clamped, and positioned before issuing a drop command to the filler. If no pouch is present, the filler holds the payload, preventing product waste and contamination of the mechanical components.
European and North American clients frequently mandate advanced data logging, Ethernet/IP communication capabilities, and remote support access. Integrated sensor systems track energy draw, air consumption, thermal drift, and cycle speeds in real-time. This continuous data feed supports predictive maintenance models that catch potential component failures before they trigger unplanned line shutdowns.
System Capability | Implementation Feature | Operational Benefit |
Central Controller | Multi-Axis Motion Control PLC | Smooth servo synchronization and low vibration |
Operator Interface | 10-inch to 15-inch Color Touch Screen | Recipe management (up to 100 presets) |
Upstream Sync | Ethernet/IP or Profinet Bus | Zero-loss signal handshaking with fillers |
Diagnostic System | Real-Time Fault Mapping & Alarms | Fast troubleshooting with clear error codes |
Remote Access | Secure VPN Gateway Integration | Instant off-site technical assistance |
Ensuring long-term operational reliability requires strict adherence to IP65 washdown design standards, systematic wear-part replacements, and continuous lubrication management.
Industrial environments—especially those handling raw meats, poultry, dairy, or pickled foods—demand rigorous clean-in-place (CIP) and sanitation workflows. High-performance bag-feeding equipment features sloped stainless-steel surfaces, seamless continuous welds, and fully sealed electrical enclosures rated to IP65 or IP67 standards. These design details prevent washdown water, sanitizing chemicals, and food debris from accumulating in mechanical crevices where bacteria like Listeria or Salmonella could thrive.
Preventive maintenance schedules should focus heavily on consumable wear items. Vacuum suction cups, silicone sealing strips, Teflon insulation tapes, and pneumatic air filters experience continuous thermal and mechanical stress. Establishing clear replacement intervals prevents sudden drops in vacuum levels or compromised seal quality.
Daily Operational Checks
Wipe down thermal sealing bars and check Teflon tape surfaces for carbon build-up or tears.
Clean pneumatic suction cups with isopropyl alcohol to remove oil, dust, or product residue.
Check system compressed air regulators to verify inline moisture traps are drained.
Weekly Operational Checks
Inspect the rotary vacuum pump sight glass to confirm oil level and clarity.
Lubricate open mechanical gears, drive chains, and globoidal cam indexers with food-grade grease.
Inspect mechanical gripper fingers for alignment and verify clamping spring tension.
Monthly Operational Checks
Inspect all electrical connections inside the main control cabinet for loose terminal blocks.
Measure heater ribbon electrical resistance to identify thermal degradation before elements fail.
Replace main inline air filters and inspect all vacuum lines for signs of cracking or wear.
Understanding the performance characteristics of an automatic bag feeding and packaging machine is essential for maximizing production line yield, reducing labor costs, and maintaining strict quality control. From heavy-duty stainless-steel construction and servo-driven rotary kinematics to advanced vacuum evacuation and smart Industry 4.0 control integration, these systems form the core of modern flexible packaging operations.
As consumer demand shifts toward sustainable monomaterial pouch films and reclosable bag geometries, automated packaging equipment continues to evolve. Investing in robust, high-precision bag-feeding platforms ensures that high-volume food, pharmaceutical, and chemical manufacturers maintain the speed, seal integrity, and operational flexibility required to stay competitive in an evolving global market.
